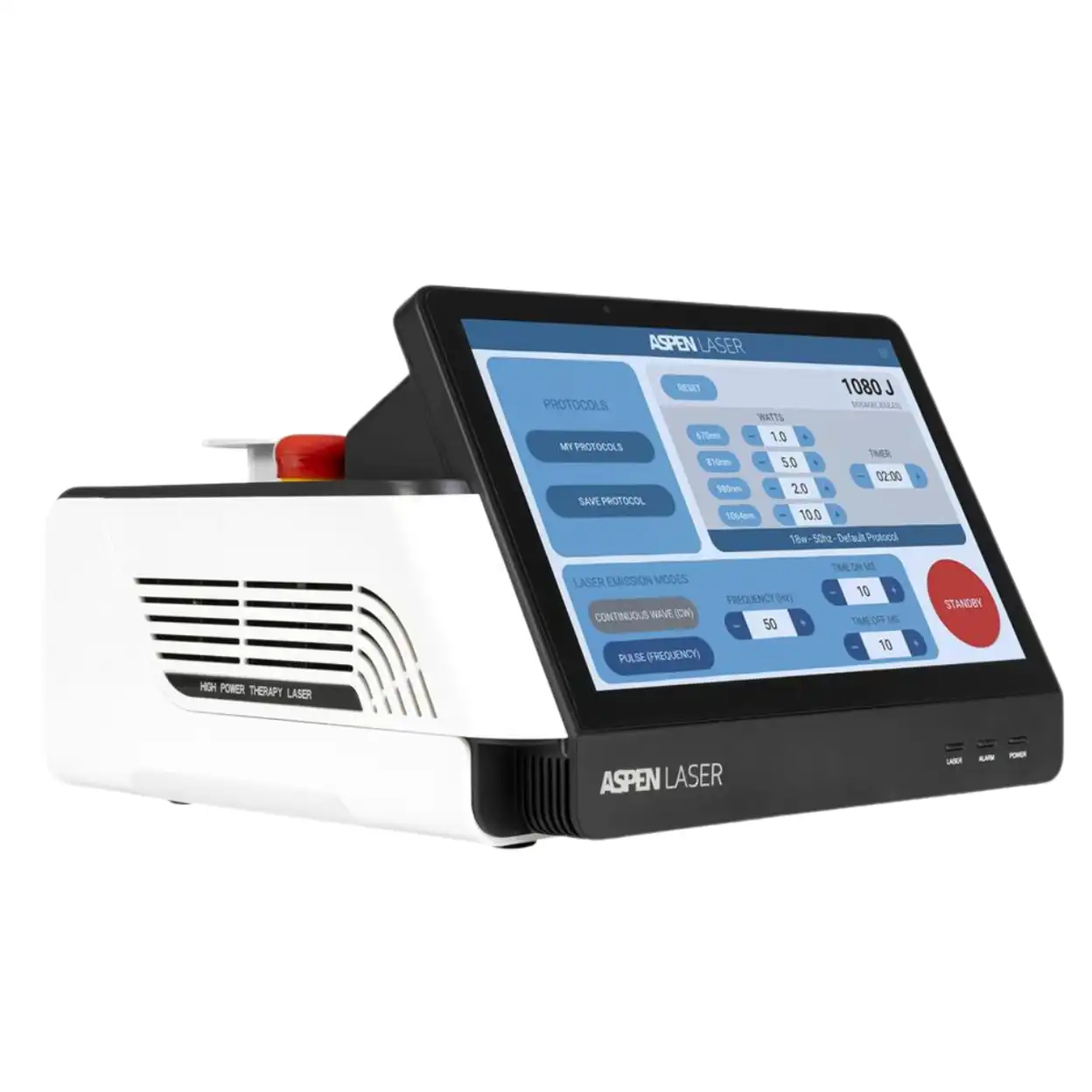

Ascent Compact Laser Therapy Device
The most advanced Aspen Laser system, built for precision, power, and clinical performance.
High-Tech Recovery in a Compact Form
The Ascent Laser System is Aspen’s most advanced and most adaptable Class IV laser. Designed with power and flexibility in mind, the Ascent brings together four therapeutic wavelengths in one compact laser therapy device. It’s engineered for providers who need clinical strength in a sleek, space-saving system.
Whether you’re treating pain, inflammation, or injury recovery, the Ascent gives you powerful results in less time, all within a streamlined footprint that fits seamlessly into any clinic or wellness space.
Quad-Wavelength Power in One Portable System
The Ascent features Aspen’s proprietary Quad-Wavelength Technology, combining 810nm, 980nm, 1064nm, and 1210nm wavelengths for unmatched tissue depth, absorption, and versatility.
Includes contact and non-contact treatment modes
Offers pulse and continuous wave options
Runs from a user-friendly touchscreen interface
Provides an upgradeable platform to grow with your practice
Designed for Results-Driven Providers
The Ascent is built for clinics that need more than just a standard therapy laser. With four wavelengths working in synergy, you’ll experience:
Shorter treatment times
Deeper tissue penetration
Broader treatment applications
More consistent outcomes
It’s the ultimate tool for physical therapists, chiropractors, sports medicine professionals, and integrative wellness teams seeking to expand treatment offerings and deliver faster recovery.
Key Features
01.PowerDose Diodes
The engine of the Apex Laser are PowerDose Diodes that provide the highest Average Power output. In contrast to laser devices that provide Peak Power, Average Power has proven to be a key for generating the best clinical outcomes.
02.Unprecedented power per wavelength
Durable design for long life operations
German manufactured for internationally recognized quality
03.Wavelength MultiPlexer Technology
Wavelength Multiplexer Technology incorporates multiple wavelengths operating in various configurations that are emitted from a single output. This provides better penetration, from shallow to deep, with optimal tissue saturation required for therapeutic treatments.
04.Broadest range of wavelengths providing optimal treatment outcomes
Directly select one to three wavelengths
Adjustable power levels per wavelength
05.SmartMode Controls
Featuring complex and sophisticated laser operating modes, SmartMode Controls offer Continuous Wave (CW) emissions with pulsing emissions to provide unlimited opportunities for precise and desired clinical treatments that can be adjusted with each patient.
06.Fast treatments with continuous wave
Broad range Hertz (frequency settings) for pulsing treatments
Patient response driven protocols
07.Patient Response Driven (PRD) Protocols
Consistent and replicable treatment results are now possible with Patient Response Driven Protocols. In contrast to Preset Protocols, PRD Protocols are based on a wide range of patient characteristics and responses to each treatment. This allows the Apex Laser Series to provide the broadest range of features that are paramount to stimulate deep musculoskeletal, vascular, lymphatic, and neurological structures.
08.Ability to directly select and adjust operating laser parameters
Avoid under-dosing (low joules) and under-treatment (small area or incorrect wavelength)
Reduce conditioning response by variations and adjustments with each treatment
Specs
| Model | Ascent Series 32 watt |
| SKU | AL-P32x |
| Laser Type | GaAlAs Diode Laser |
| Dimensions | inches: 11W x 11L x 7.5H |
| Weight | 15.4 LBS (7 KG) |
| Wavelength, Laser | 670nm + 810nm + 980nm + 1064nm |
| Maximum Power | 32 watts |
| Operation Modes | Continuous Wave (CW) and Pulse |
| Pulse Duration | 10μs-3s |
| Repetition Rate | 0.2Hz-20KHz |
| Fiber Sizes | 550 uM |
| Fiber Connector | SMA905 Connector |
| Pilot Beam | Red Diode Laser Of 635nm, Power<5mW |
| Control Mode | Color Touch Screen |
| Voltage/Current Rating | 110/220 VAC, 5A , 50/60 Hz |
| Safety Compliance | CE0197 |
Ready to Add the Ascent to Your Practice?
The Ascent Laser is available by direct consultation only. Contact our team to explore models, receive a customized quote, and get expert guidance on integrating this compact laser therapy device into your treatment protocols.
